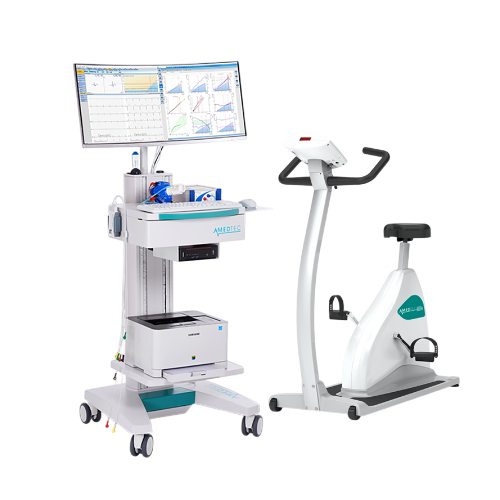

Amedtec® Ergostik Ergospirometer
The Ergostik-System sets new standards for ergospirometer. The software can be operated intuitively and enables fast results. The combination of a stress test ECG, the exterior flowsensor as well as the stable O2/CO2 sensors guarantee precise results in the cardiopulmonary functional diagnostics.
| Voltage | |
| 115V | yes |
| 230V | yes |
Technical data
- System Components: PC system, ECG trolley, ergometer, interface for ergospirometry, Ergostik system, calibration pump, patient cable
- Flow Sensor: Ergoflow differential pressure sensor, accuracy ±3% or ±50 mL/s, dead space <20 mL, response time <90 ms
- Gas Analyzers: Oxygen and carbon dioxide analyzers, measurement range 0–100%, accuracy ±0.1%
- Software Platform: BLUE CHERRY® diagnostic software, features CPET, spirometry, pre/post medication investigations, trend analysis, modular design for future upgrades (e.g., MVV, pulse oximetry), patient and test information database
- Connectivity: USB interface for PC, network compatibility with HL7 for hospital information system integration
- Physical Dimensions: 21 × 17.5 × 7.5 cm (L × W × H)
- Weight: 1.12 kg
- Power Supply: 12 V DC, power consumption ~15 W
- Calibration: Automatic calibration of gas sensors, manual calibration option for flow sensor
- Optional Accessories: Pulse oximetry module, Maximum Voluntary Ventilation (MVV) module, treadmill or ergometer control interface, 12-lead ECG module with arrhythmia analysis
