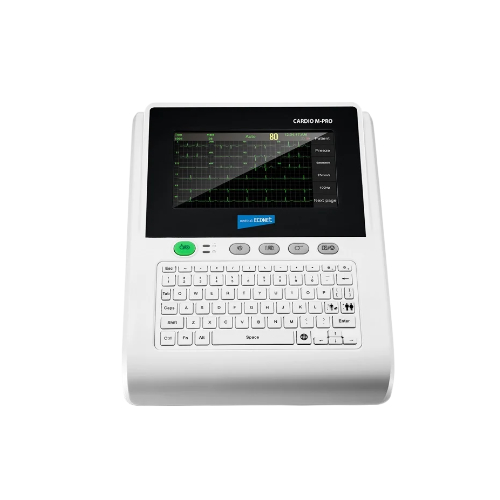

Cardio M 12-channel ECG
The Cardio M 12-channel ECG is a compact and user-friendly electrocardiograph designed for efficient heart health assessment. It captures 12-lead resting ECGs and provides automatic interpretation based on the Minnesota Code, distinguishing between 25 diagnostic cases. The device offers clear A4 printouts with essential parameters such as heart rate, PR interval, QRS duration, and QT/QTc intervals. It supports both manual and 10-second memory ECG recording modes. Data can be stored in JPEG or PDF formats and transferred to medical PCs. The Cardio M is suitable for various healthcare settings, including clinical studies, and is known for its reliability and ease of use.
| Voltage | |
| 115V | yes |
| 230V | yes |
Technical data
- 12-channel ECG recorder with automatic measurement & interpretation
- Portable – mains power or built-in rechargeable battery (suitable for ambulances, home visits)
- ECG printouts in A4 format (3-channel + rhythm, 6-channel + rhythm, full 12-channel rhythm, 60-second rhythm)
- Automatic analysis – heart rate, PR interval, QRS, QT/QTc, electrical axes; up to 25 diagnostic interpretations
- Size & Weight – 296 × 305 × 97.5 mm, 3.2 kg
- Safety & Environment – Class I / Type BF, 10–40 °C, 30–85% humidity, 70–106 kPa air pressure
- Accessories – patient cable, power cord, 6 chest electrodes, 4 limb electrodes, instructions, paper, ECG gel
Downloads
