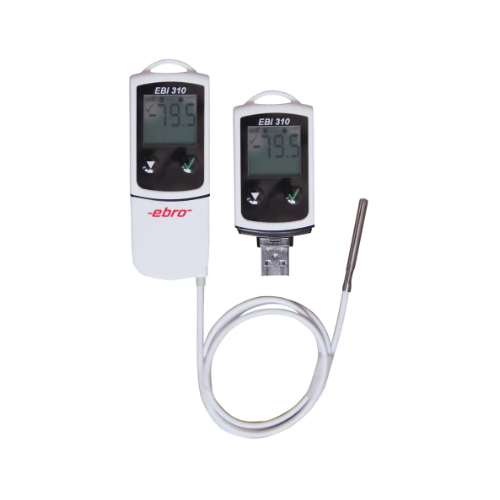

EBI310-TPX220 Temperature-Datalogger for -80°C
The EBI310-TPX220 is a high-precision USB temperature data logger designed for monitoring ultra-low temperatures down to -200°C. It features the TPX 220 external probe, which utilizes a Pt1000 sensor to provide accurate temperature measurements across a wide range. The device offers a memory capacity of up to 120,000 measurements and supports a sampling rate from 1 second to 24 hours. It is equipped with a USB interface for easy data transfer and is compliant with various industry standards, including GMP and 21 CFR Part 11. The EBI310-TPX220 is suitable for applications requiring precise temperature monitoring in environments such as deep freezers, transport of temperature-sensitive goods, and pharmaceutical storage.
Labfish offers additional services for our loggers:
- Calibration of the logger and Programming Service: Logger is pre-set according to customer's specifications
- Logger Exchange Program: Annual exchange of the old logger with a freshly caibrated logger.
| Voltage | |
| 115V | yes |
| 230V | yes |
Technical data
- Temperature range: -200°C - +250°C
- Precision:±1.0 °C (-100 °C…-20 °C) / ±0.2 °C (-20 °C…+60 °C)
- Data memory: 120.000 readings
- Battery: Lithium button cell (CR 2450), 3 V
- Battery Life: Up to 2 years, depending on application
Dimensions:
- Logger: 91 × 33 × 14 mm
- External Probe: Stainless steel, Ø 5 mm, length 50 mm
- Cable Length: 1 meter (customizable up to 2.5 meters)
- Protection Class: IP65
- Display: LCD screen showing current temperature, min/max values, and alarm status
- Alarm Function: Visual indication via LED (red and yellow)
- Software Compatibility: Winlog.basic, Winlog.light, Winlog.pro
