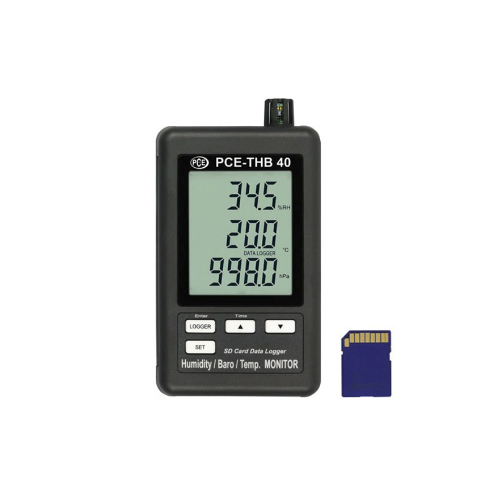

PCE-THB 40 digital Temperature-Pressure-Humidity Datalogger
The PCE-THB 40 is a versatile digital data logger designed to monitor and record temperature, humidity, and barometric pressure. It features a large LCD display for real-time measurements and stores data on an SD card (up to 16 GB), saving files in Excel-compatible format for easy analysis. The device offers adjustable sampling intervals ranging from 5 to 600 seconds or operates in automatic mode, recording data when significant changes occur. It supports multiple pressure units, including hPa, mmHg, and inHg, and provides accurate readings with a temperature range of 0–50°C, humidity range of 10–90% RH, and pressure range of 10–1100 hPa.
| Voltage | |
| 115V | yes |
| 230V | yes |
Technical data
- Dimensions: 13.2 × 8.0 × 3.2 cm (W × H × D)
- Weight: Approximately 0.285 kg (with batteries)
Power Supply:
- Batteries: 6 × 1.5V AAA (included)
- Optional: 9V mains adapter (sold separately)
- Display: Large LCD screen with real-time measurement display
- Data Storage: SD memory card (1–16 GB capacity; 2 GB card included)
- Sampling Rate: Adjustable intervals of 5, 10, 30, 60, 120, 300, or 600 seconds; or automatic based on ±1°C, ±1% RH, or ±1 hPa change
- Pressure Units: Selectable between hPa, mmHg, and inHg
- Software: Optional software for real-time data transfer to PC or laptop
